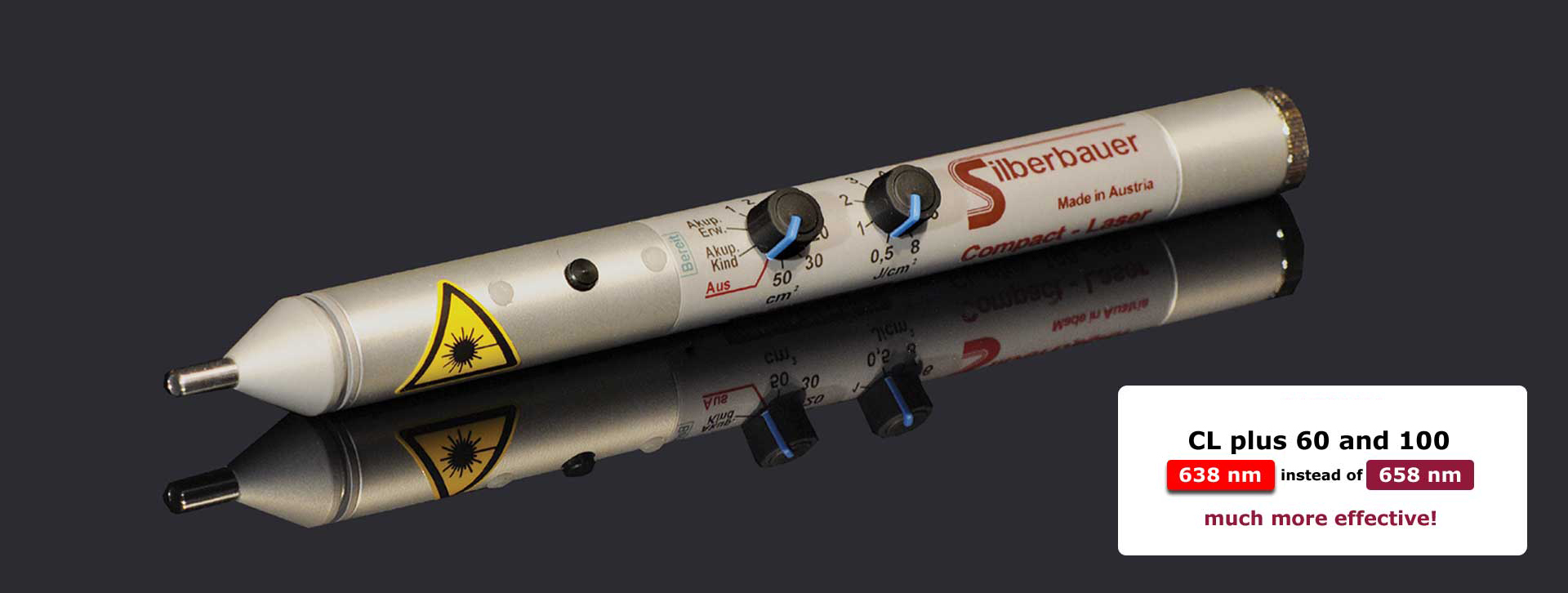

Compact Laser Series CL plus powerred
more than 40 years of laser experience
practical design
superior cutting-edge technology
First class laser – universally applicable
- Laser class 2M
- devices with 60mW, 100mW and 250 mW red laser beam
- NEW: Device 60mW also with blue laser beam
- ideal for hospitals/clinics
- intelligent timer function
- userfriendly
- energy saving - operated with AA battery
- multifunctional therapy tip
- combinable with Point detector PS 3
- Hidden Monitor technology
3-years warranty!
-
The most important indications for laser irradiationOpen or Close
The thearpy indications apply exclusively to the use of the laser device by trained personnel after instruction!
- Accelerated wound healing
- Improvemed callus formation
- Luxations, strains
- Prevented recurrence in the case of septic processes
- Improved healing of transplants
- Treatment of decubitalulcera
- Improved healing of severed nerves
- Decrease of post-operative pain
- Improved local defence at the wound
- Burns
- Herpes labialis, herpes genitalis, Herpes zoster
- Circulatory disorders of the skin, smoker’s leg
- Diabetic skin change
- Ulcera cruris
- Joint pain
- Neuralgia (sciatica, lumbago)
- Shoulder-arm syndrome
- Aphthae
- Gingivitis
- Sinuses affections
- Laser acupuncture
- Neural therapy
- Scar tissue treatment
- Mastitis
- Veterinary medicine
-

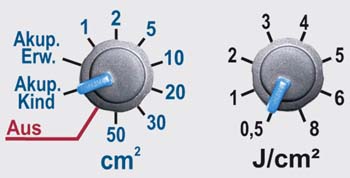

Automatic irradiation timeOpen or Close
© Silberbauer
- set the necessary radiation time in cm
- choose the preferred radiation dose in J/cm²
- the necessary therapy period is computed and set automatically
- press the start button to begin with the treatment
only applicable for the devices CL 60 and CL 100
Setting Akup. Kind (acupuncture child): performance is reduced to 25% - period 5 sec
Setting Akup. Erw. (acupuncture adult): performance is reduced to 50% - period 15 sec.Warning tones and multicolored indicator lights
-

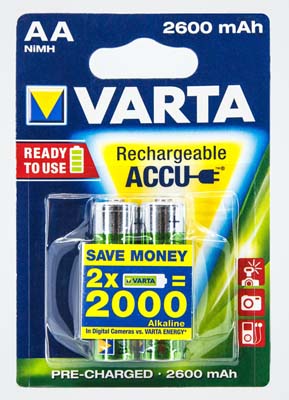

BatteryOpen or Close
The Compact Laser who is always available:
New environmentally friendly NiMH-batteries with an extremely low self discharge rate (after 1 year, 85% of charge remains!) that endures over 1000 charging cycles!
- energy saving due to the use of only one battery or a battery type AA Mignon (Type CL250-658: 2 batteries)
- operation depending on capacity can vary between 2,5 – 3,5 hours, with battery Type AA 4,5 – 5,5 hours
-
Point detection and laser treatment all in oneOpen or Close
© Silberbauer
only devices CL 60-638 and CL 100-638
To achieve satisfactory results:
- Connect the Point detector PS3 and the laser with the connection cable
- The point detector then needs to be handed over into the hand of the patient
- The laser-tip now serves as a point finder. Continue the point detection until the point detector reaches its maximum tone pitch
- Now press the laser start button and start the laser therapy
Areas of application:
- Ear acupuncture
- Body acupuncture
- Skull acupuncture
-
Data sheetOpen or Close
Currently the following Compact Laser Types are available:
Compact Laser Type CL plus 60mW-638nm Which device for which treatment? universally applicable, larger wounds, dental sector, physiotherapy, acupuncture universally applicable, dental sector, orthopaedics, physiotherapy, peripheral circulatory disorders Output power: 60 mW Wavelength: 638 nm Laser class: 2M Diameter of laser emerge: 3,2mm Therapy time per battery/with NimH-battery: 4,5 hours Weight w/o & w/ battery: 95 g /116 g Diameter: 20 mm Length: 217 mm Warranty: 3 years in accordance with our delivery conditions
Laser Inspection: every 2 years
-
Scope of deliveryOpen or Close
- 1 Compact Laser plus xx
- 1 Fast charger for NiMH-batteries
- 1 Comfort-Laser adjust glasses green (for the therapist)
- 1 Comfort–Laser goggles turquoise (for the patient)
- 1 instructions for use + instruments book
- 1 Map "applications of the Soft-Laser"
- 1 instruction to the device (safety and device operation, approx. 60 min.)
- 1 inspection plaque
- 1 !!! WARRANTY = 36 MONTHS!!!
- 2 NiMH high performance rechargable batteries (AA) 2050 mAh
- 1 lockable casket, laser radiation warning sign
- 1 case (Nabuka)
- 2 NiMH high performance rechargable batteries (AA) 2050 mAh
- 0
- DownloadsOpen or Close
- Prices + OrderingOpen or Close
-
AccessoriesOpen or Close
Connection Cable
for Silberbauer Compact Laser CL mini/plus & PS3 point detector
69.00 €
Connection cable
for Silberbauer Laser CL mini/plus & comb (information transfer)
66.00 €
Actual price status January 2024
Technical data are subject to change!
