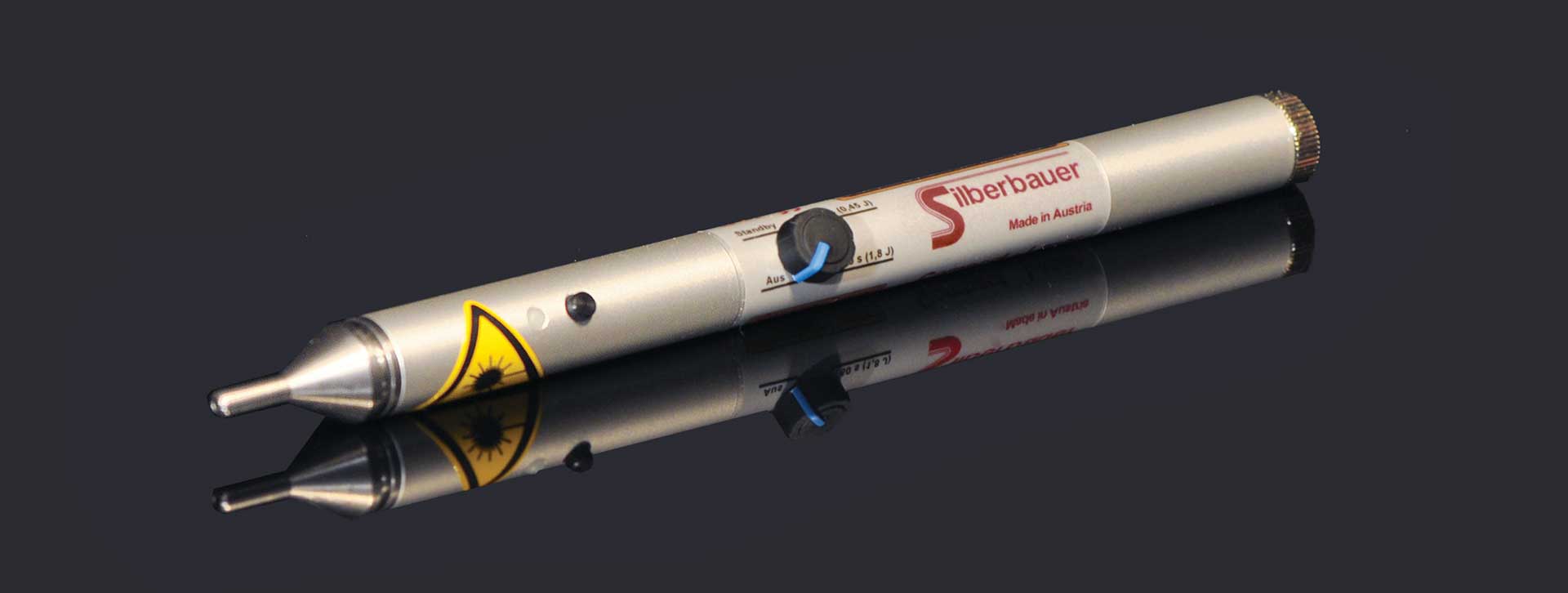

Compact Laser Series CL mini
Made in Austria
36-months warranty
-
The most important indications for laser irradiationOpen or Close
The therapy indications apply exclusively to the use of the laser device by trained personnel after instruction!
- Accelerated wound healing
- Improved callus formation
- Luxations, strains
- Prevented recurrence in the case of septic processes
- Improved healing of transplants
- Treatment of decubitalulcera
- Improved healing of severed nerves
- Decrease of post-operative pain
- Improved local defence at the wound
- Burns
- Herpes labialis, herpes genitalis, Herpes zoster
- Circulatory disorders of the skin, smoker's leg
- Diabetic skin change
- Ulcera cruris
- Joint pain
- Neuralgia (sciatica, lumbago)
- Shoulder-arm syndrome
- Aphthae
- Gingivitis
- Sinuses affections
- Laser acupuncture
- Neural therapy
- Scar tissue treatment
- Mastitis
- Veterinary medicine
-
Laser class 2MOpen or Close
© Silberbauer
The same therapeutical effect as laser class 3B - just less strict safety regulations.
This relatively new laser class is applicable for devices with divergent radiaton, making their use within a certain distance completely safe – for both the eye and the skin.
The sign "Attention laser-radiation" is still included in the scope of delivery, as it is a good advert for doctors. The sign "Wear protection googles" is now omitted.
-

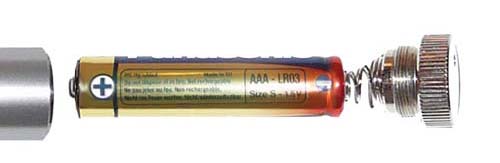

BatteryOpen or Close
© Silberbauer
The Compact Laser is always available!
- energy saving due to the use of only one battery or a battery type AAA = Lady cells = LR03
- Operation depending on capacity can vary between 10-16 hours, with battery type AAA 5-9 hours.
-

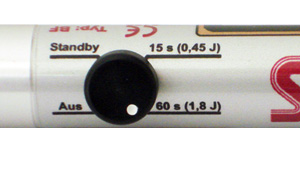

Switchable TimerOpen or Close
© Silberbauer
The Compact Laser that does not require a clock!
The same therapy time per treatment point is used for many punctual applications (acupuncture, neural therapy). Thus, acupuncture points, for instance, are each lasered for with 15 seconds.
This time is already preprogrammed in the Compact Laser CL mini!
You simply press the laser's start button and keep it pressed until the laser turns off. This enables you to precisely treat various, you can exactly treat various points in a row. If a longer therapy period is in case of poorly healing wounds for example, in case of poorly healing wounds, the timer is switched to “1 minute”. According to your preferred therapy period, you can start the laser again after the 1 minute therapy (3 minutes of irradiation = starting the laser 3 times).
In case of a shorter therapy period, you simply release the button to stop the laser immediately.
-

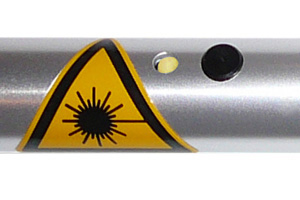

Performance ControlOpen or Close
© Silberbauer
The Compact Laser with 100% constant output power and performance check
To achieve an optimum therapy result:
A new type of control circuit, without optical measurement, allows complete independence of any reflections through the skin!The result:
100% constant output power = "Constant power", also in the case of strong reflections!Additional performance control:
an electronic monitoring with LED shows independent from the control circuit if the performance is ok – for your own safety!Thus, with the Compact Laser CL mini you can rely on contstant laser performance and also convince yourself about it at any time!
-
Multifunctional therapy tipOpen or Close
Laser treatment of a point
-> place the laser directly on the skin
Laser treatment of an area
-> keep the distance between laser and skin up to 5 cm
Laser treatment of orifices
-> e.g. direct radiation into the ear canalOf course, the Compact Laser Series CL mini also allows you to do both point detection and laser treatment in one!
The laser diode is well protected and built in inside the case, thus providing perfectly mechanical and optical security.
Easy cleaning! –e.g. you could clean the tip simply with an alcohol swab.
-

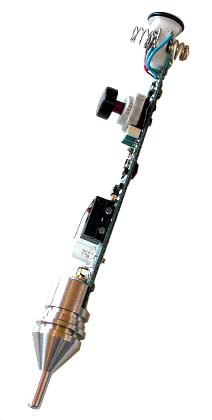

Intrinsic Values of the CL miniOpen or Close
© Silberbauer
O-ring tightening between battery case and electronics: protection, if the battery leaks!
Nickel plated high pressure double contact springs: safe dual contacting, no loose contact!
Timer with high quality rotary switch with gold contacts
Multilayer – Printed Circuit Board, with automatically inserted components on both sides: highly reliable electronics in a small area!
Large push-button switch with click-effect and gold contacts: needs more space, but is much more reliable and gives you a good feel!
Large ultra-bright LED: bright indication also in bright therapy rooms with low electricity consumption.
Laser diode well protected and built on the inside of the case.
-
Point detection and laser treatment all in oneOpen or Close
© Silberbauer
To achieve satisfactory results:
- Connect the Point Detector PS3 and the laser with the connection cable
- The Point Detector then needs to be handed over into the hand of the patient
- The laser-tip now serves as a point finder: Continue the point detection until the point detector reaches its maximum tone pitch
- Now press the laser start button and start the laser therapy
Areas of application:
- Ear acupuncture
- Body acupuncture
- Skull acupuncture
-
Compare!Open or Close
CL Laser mini: Laser from other manufacturers:
The lucid and slim tip is perfectly suited for acuptuncture and area radiation, as well as for treatment at and in the ear, thus reducing the need for additional accessories.
Construction wise other devices require further accessories, e.g. extensions for acupuncture and ear canal treatment or probes to treat areas
Timer with high quality rotary switch with gold contacts –
switchable to seconds and joulesFixed or no timer at all
O-ring tightening between battery case and electronics: protection, if the battery leaks!
No protection of electronics: leaking batteries damage in many cases the complicated inner workings.
Nickel plated high pressure double contact springs: safe dual contacting, no loose contact!
Battery contacts are not always guaranteed. Energy saving due to the use of only one commercial battery Minimum requirement of two batteries Easy to use, immediately understandable! Partly very cumbersome device operation The integrated diffuser in the tip allows optimal and uniform light radiation Inconsistent light distribution respectively requirement of diffuser extensions leading to light loss
-
Data sheetOpen or Close
Currently the following Compact Laser Types are available:
Modell CL mini 8mW-658nm Output power: 8 mW Wavelength: 658 nm Laser class: 2M Diameter of laser emerge: 1,5mm Timer:
Dose:15 sec / 60 sec
0,12 J / 0,5 JTherapy time per battery/with NiMH-b.: 16 hours / 9 hours Weight w/o & w/ battery: 78 / 89 g Diameter: 15 mm Length: 188 mm Warranty: 3 years in accordance with our delivery conditions
Laser Inspection: every 2 years
-
Scope of deliveryOpen or Close
- 1 Compact Laser mini xx
- 4 alkali-manganese batteries size AAA (=Lady cells)
- 1 CL-mini case CE
- 1 lockable casket
- 1 laser radiation warning sign
- 1 instructions for use + instruments book
- 1 Soft-Caps laser goggles for the patient
- 1 inspection plaque
- 1 !!! WARRANTY = 36 MONTHS!!!
-
DownloadsOpen or Close
- Prices + OrderingOpen or Close
-
AccessoriesOpen or Close
Connection Cable
for Silberbauer Compact Laser CL mini/plus & PS3 point detector
66.00 €
Connection cable
for Silberbauer Laser CL mini/plus & comb (information transfer)
66.00 €
Actual price status January 2024
Technical data are subject to change!
